Atem Power 12V 200W Solar Panel Kit Mono Shingled Caravan Power Charging Camping
Solar panels provide a way to capture the sun’s energy and put it to power your batteries. But ATEM POWER has taken a step further by integrating the newest shingled solar cell technology into its shingled solar panels/shingled panel with the key advantages: more power, improved reliability and more aesthetic.
This 200W shingled solar panel avoids the use of ribbons, busbars, and soldering processes, the cells are cut into 5 or 6 strips then joined together using electrically conductive adhesives (ECA). So there is nothing but pure cell, and you’ll get 15~20% output than traditional RV solar panel since it is designed to capture more solar energy per square meter. For conventional solar panels, a shaded part can have a significant effect on power output, whereas the cells of this shingled panel are wired in parallel that significantly reduce the losses and hot spot effect caused by shade. IP-68 rating helps it defy harsh conditions, and no visible circuitry gives it a sleek look.
FEATURES

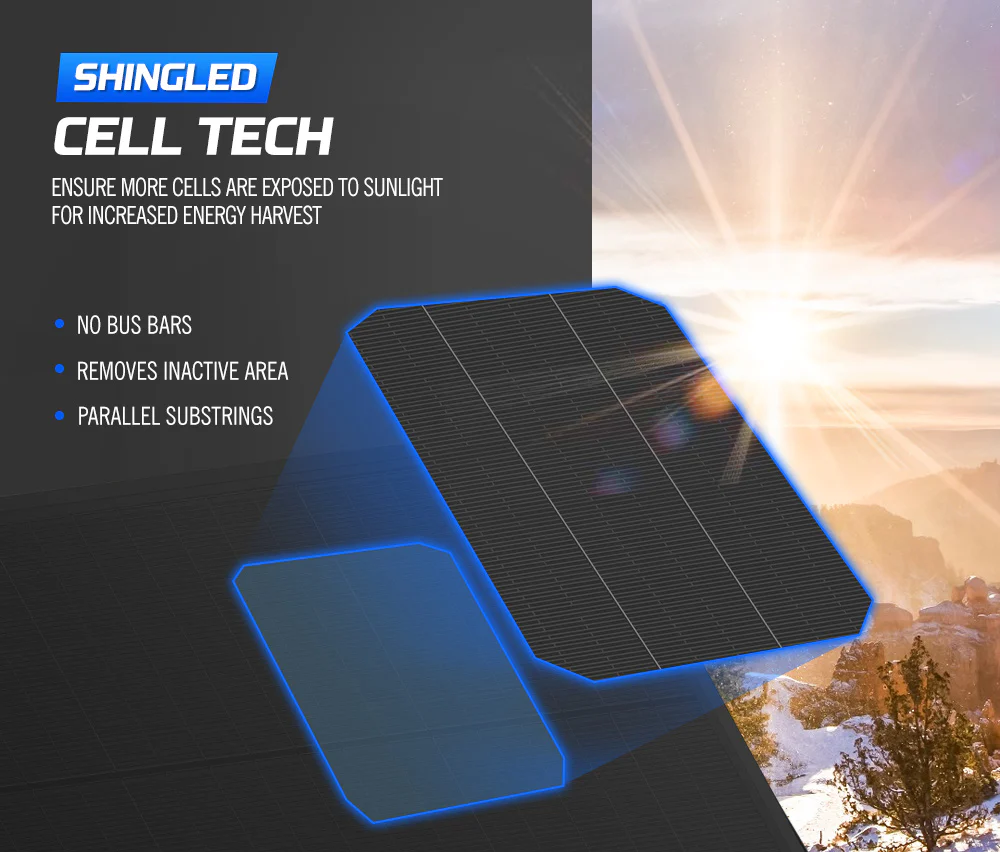

Shingled Cell Tech: This tech avoids the use of ribbons, busbars but creates a string of strips, so more cells are exposed to sunlight for increased energy harvest.

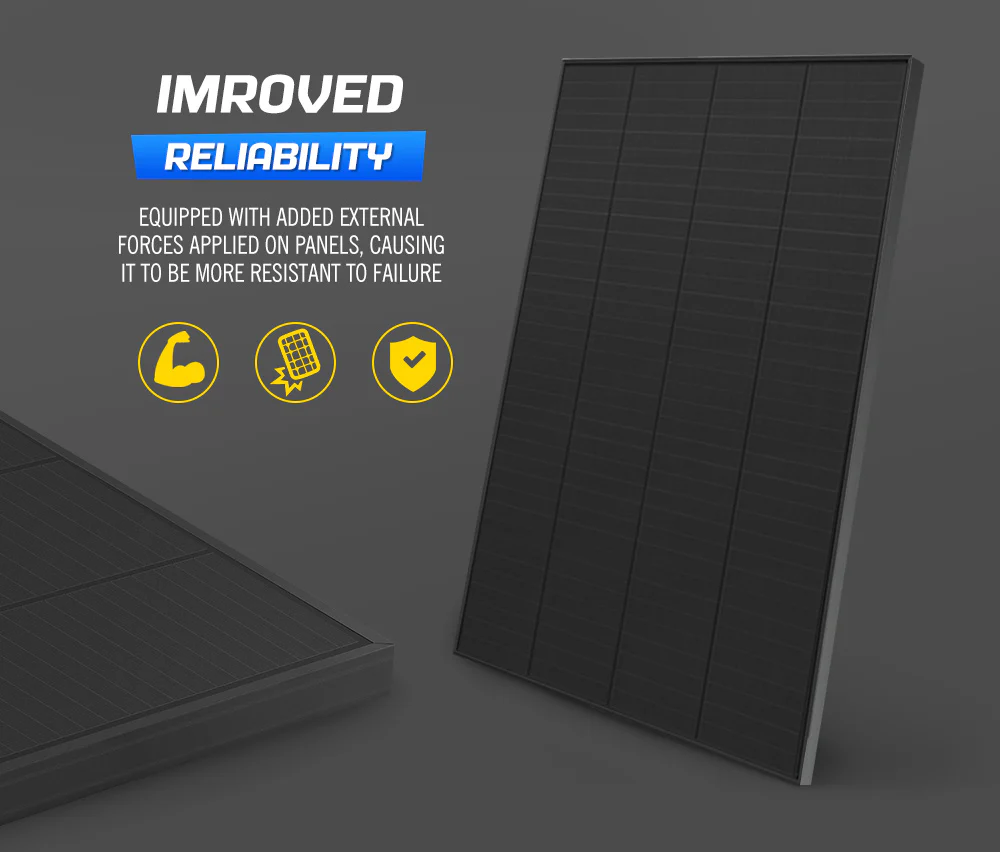

Improved Reliability: Shingled solar panel is more resistant to failure caused by external forces applied to the panel when compared to conventional solar panels.

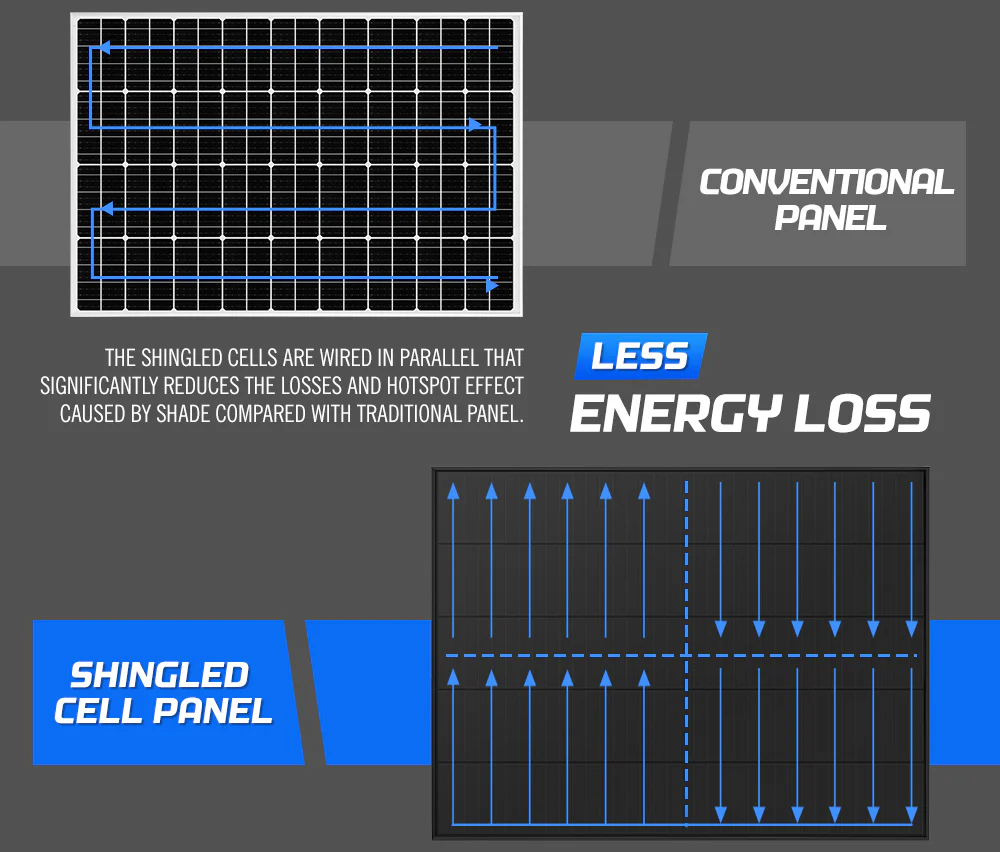

Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.

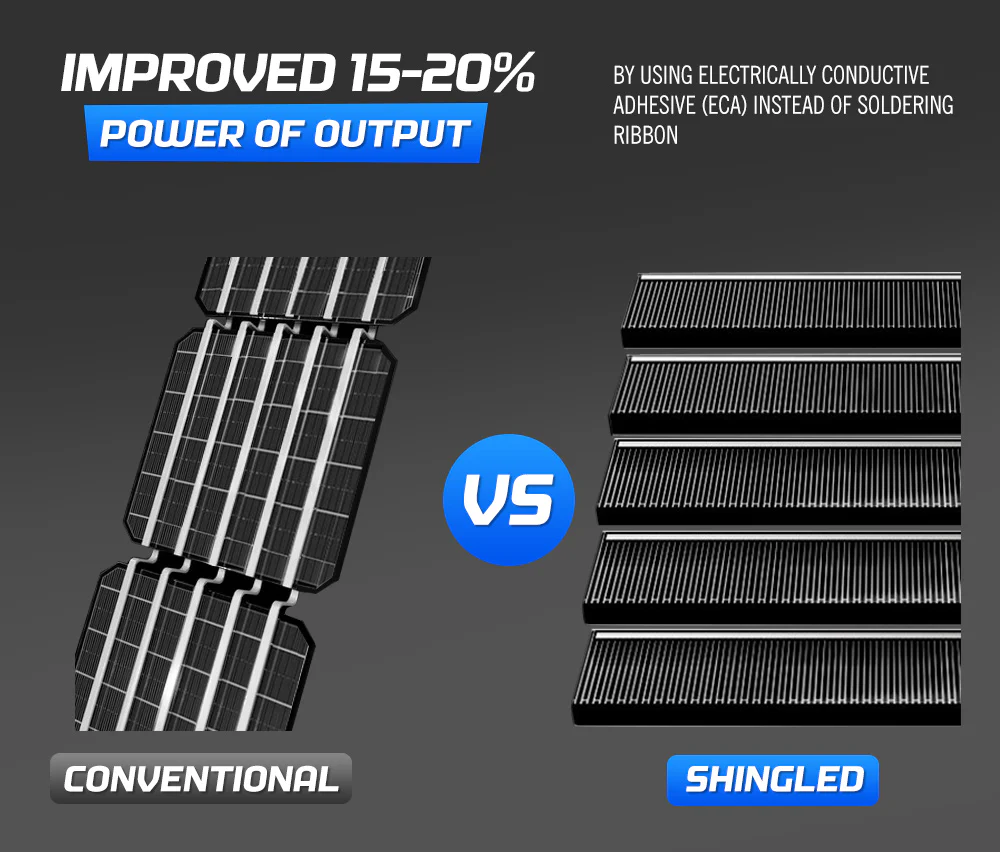

Greater Output: Jointed together by using electrically conductive adhesive (ECA) instead of busbars, you’ll get improved 15~20% output than traditional panel.
Unbeatable Rigidity: Built with a tough aluminium frame and a thick tempered glass, this shingled solar panel is designed to stand up to harsh conditions.
All Weatherproof: This shingled panel has an IP68 waterproof rating, so no worries about the rainy days. It will be with you to keep your electronics running.
Suitable for Most Batteries: This 200W shingled solar panel is compatible with lead acid, AGM, GEL, Flooded, lithium-ion and LiFePO4 batteries

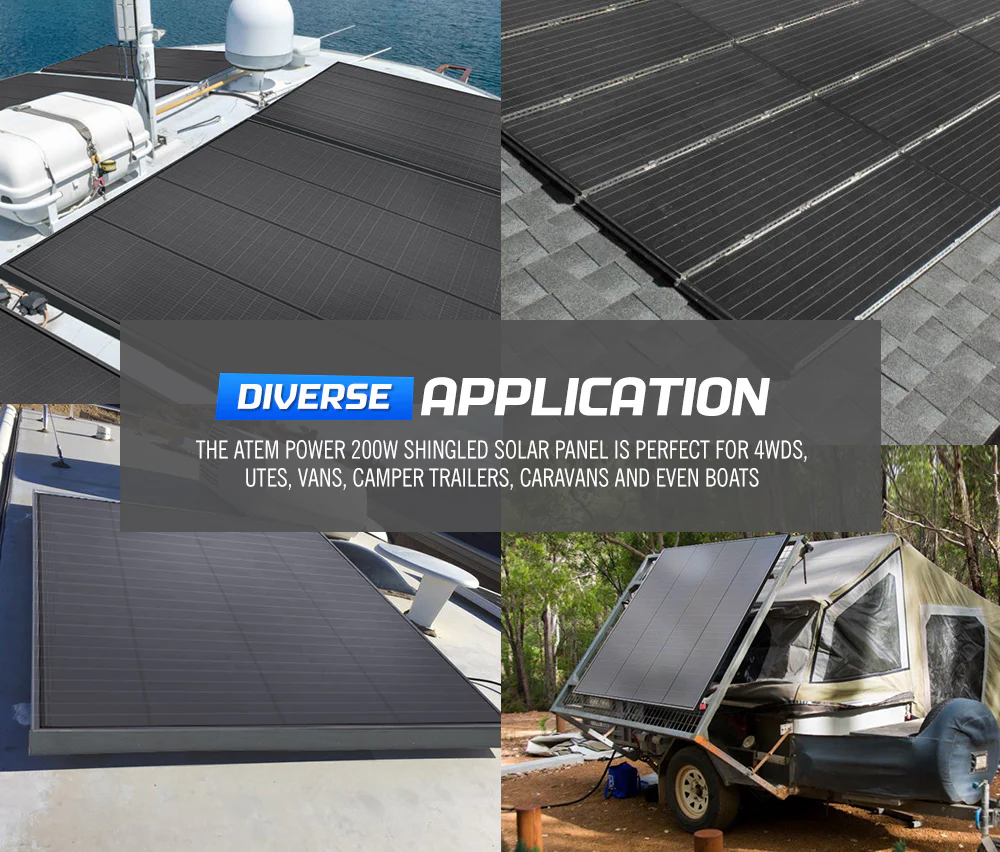

Diverse Application: The ATEM POWER 200W shingled solar panel is perfect for 4WDs, utes, vans, camper trailers, caravans and even boats!
More Aesthetic: This shingled solar panels has no visible circuitry which gives it clean, simple and sleek look while providing superior appeal.
SPECIFICATIONS
Material:Shingled Cells
Maximum Power:200W
Open-Circuit Voltage (VOC):24.8V
Short-Circuit Current (ISC):10.8A
Maximum Power Voltage (VMP):19.8V
Maximum Power Current (IMP):10.1A
Maximum System Voltage:1000V
Max. System Fuse Rating:15A
Temperature Range:-40C~ 85C
Power Tolerance: 5%
Color:Black

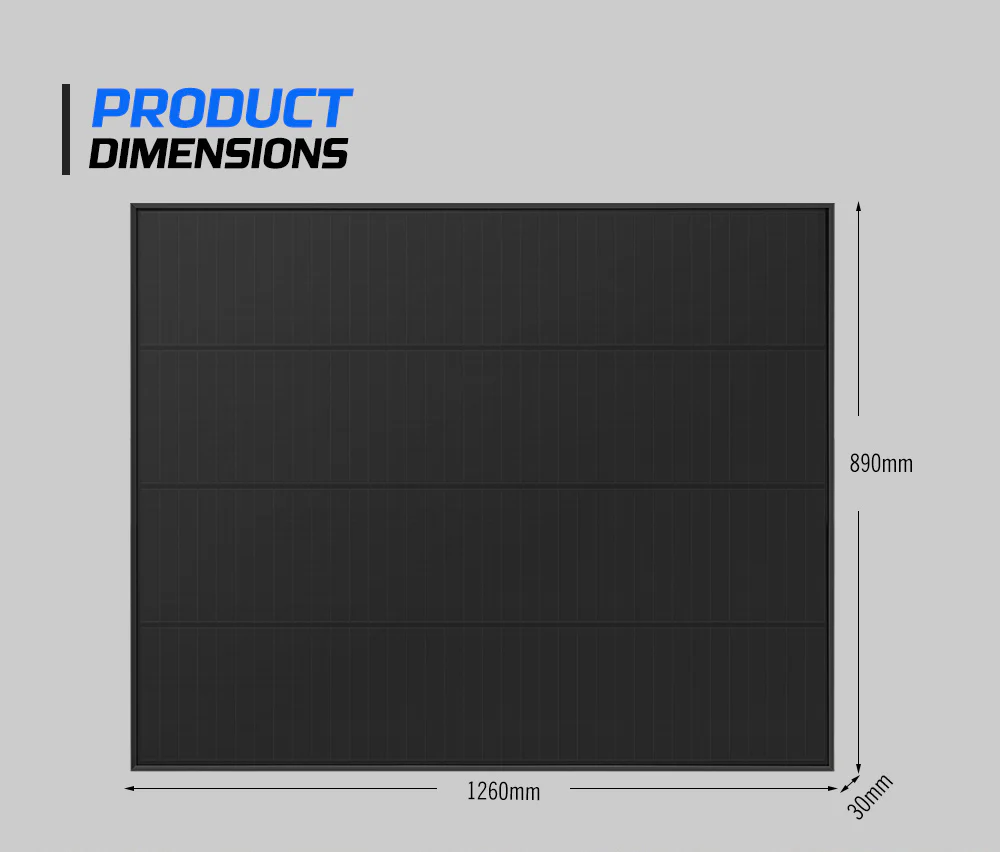

Product Size:126x89x3cm
Package Size:129x93.5x5.5cm(LxWxH)
Gross Weight:14kg
PACKAGE INCLUDES
1 x ATEM POWER 200W Shingled Solar Panel
WARRANTY
5 Year Warranty
