Atem Power 200W Folding Solar Panel Kit 12V Battery Charger Power Mono
.
FEATURES

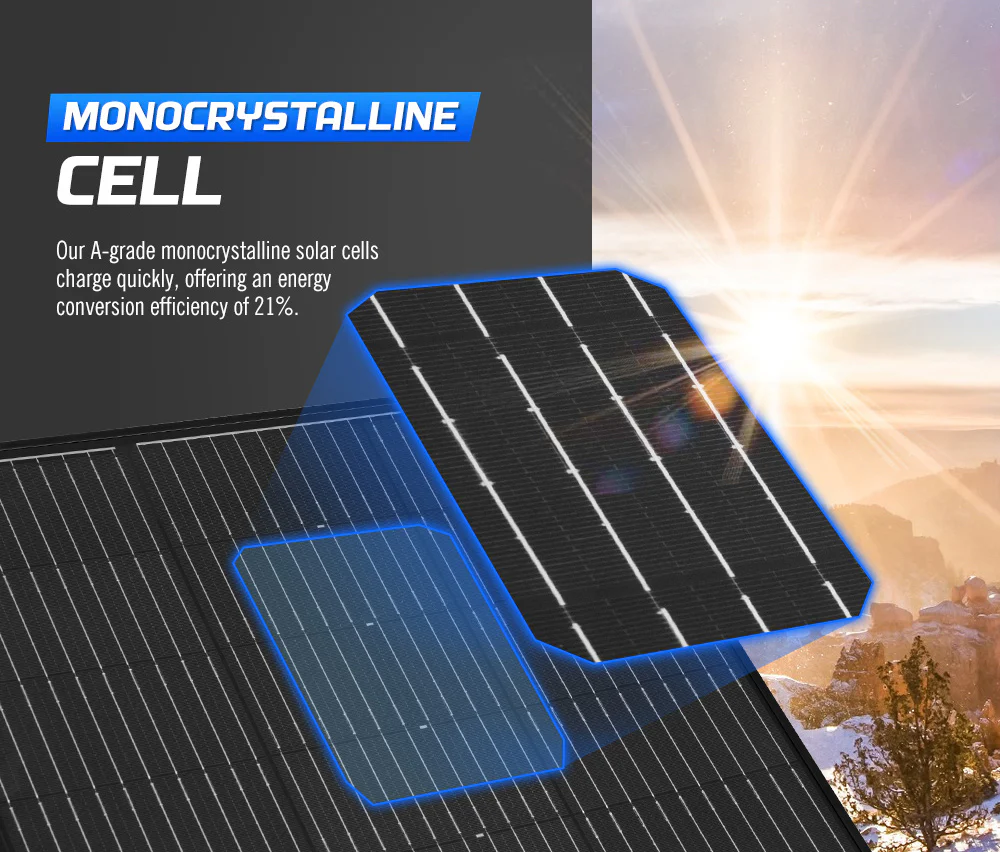

Monocrystalline Cell: Our A-grade monocrystalline solar cells charge quickly, offering an energy conversion efficiency of 21%.

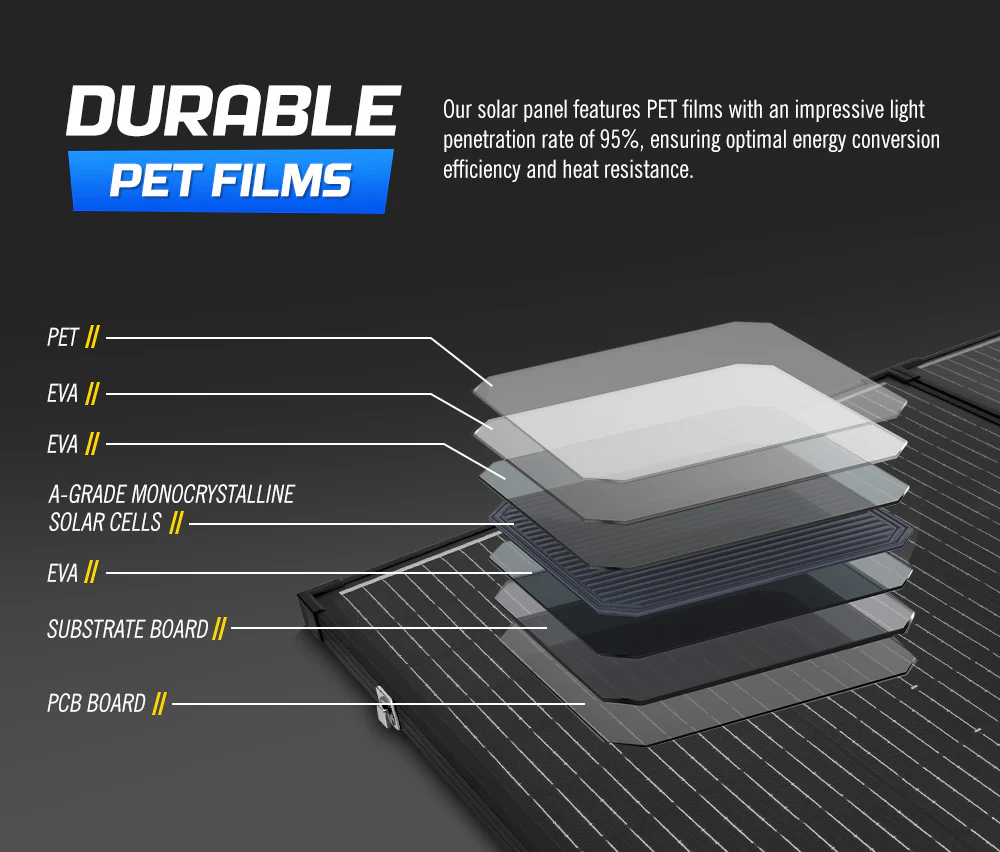

Durable PET Films: Our solar panel features PET films with an impressive light penetration rate of 95%, ensuring optimal energy conversion efficiency and heat resistance.
Diode Bypass Technology: Our diode bypass technology effectively reduces power loss due to shade and provides essential protection against overheating for shaded cells.

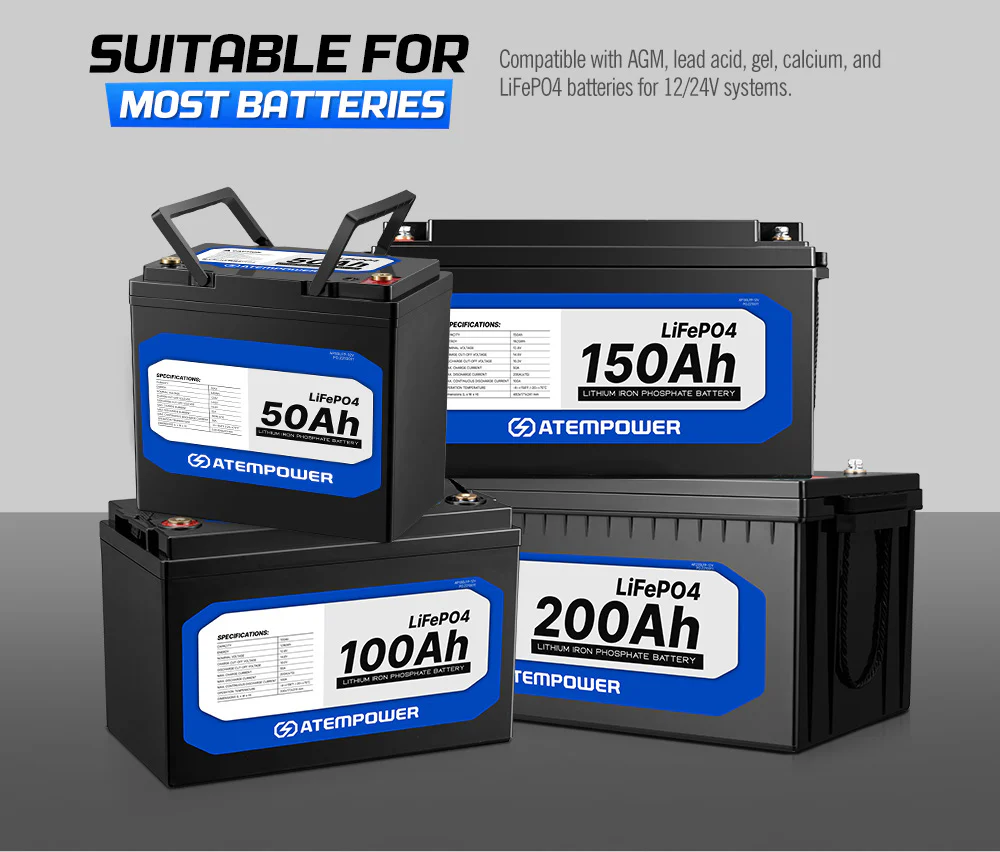

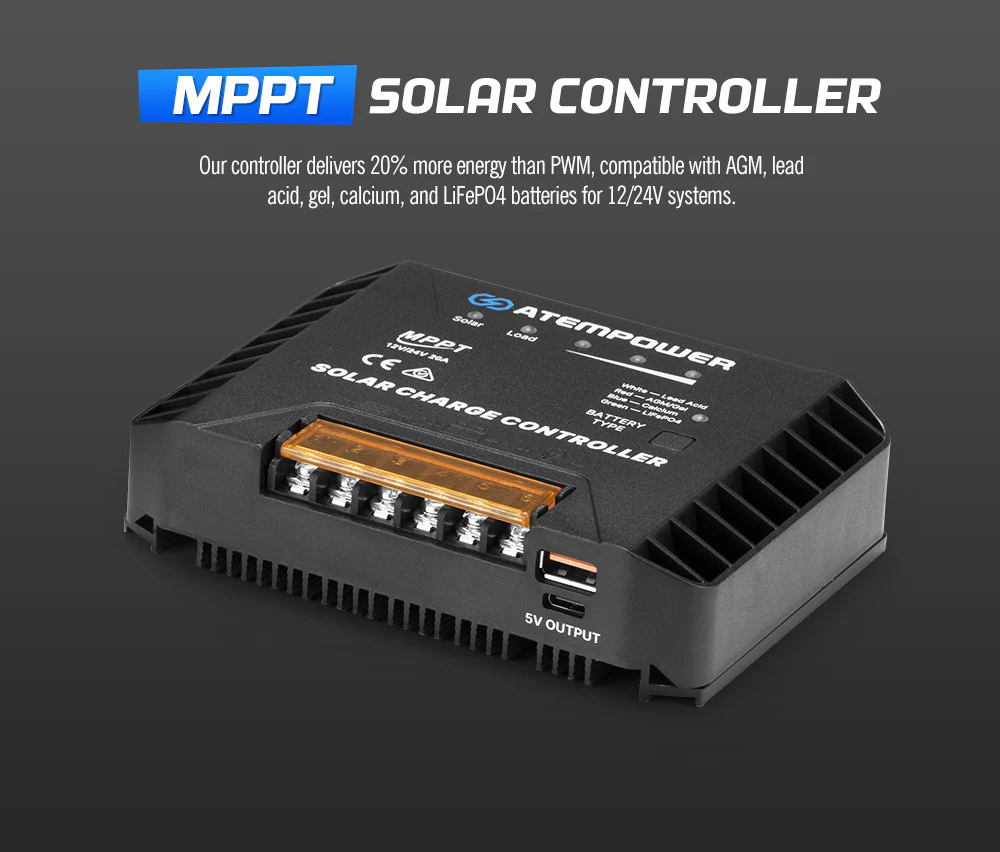

MPPT Controller Integrated: Our controller delivers 20% more energy than PWM, compatible with AGM, lead acid, gel, calcium, and LiFePO4 batteries for 12/24V systems.
Dual Outputs: Our controller includes both USB-A and USB-C ports with a combined output of 5V/2.4A to charge your smartphones, tablets, digital cameras, and more.
Grab and Go: Take this foldable solar panel anywhere with its briefcase design and lightweight of only 6.8kg, featuring a sturdy carrying handle for easy transport.

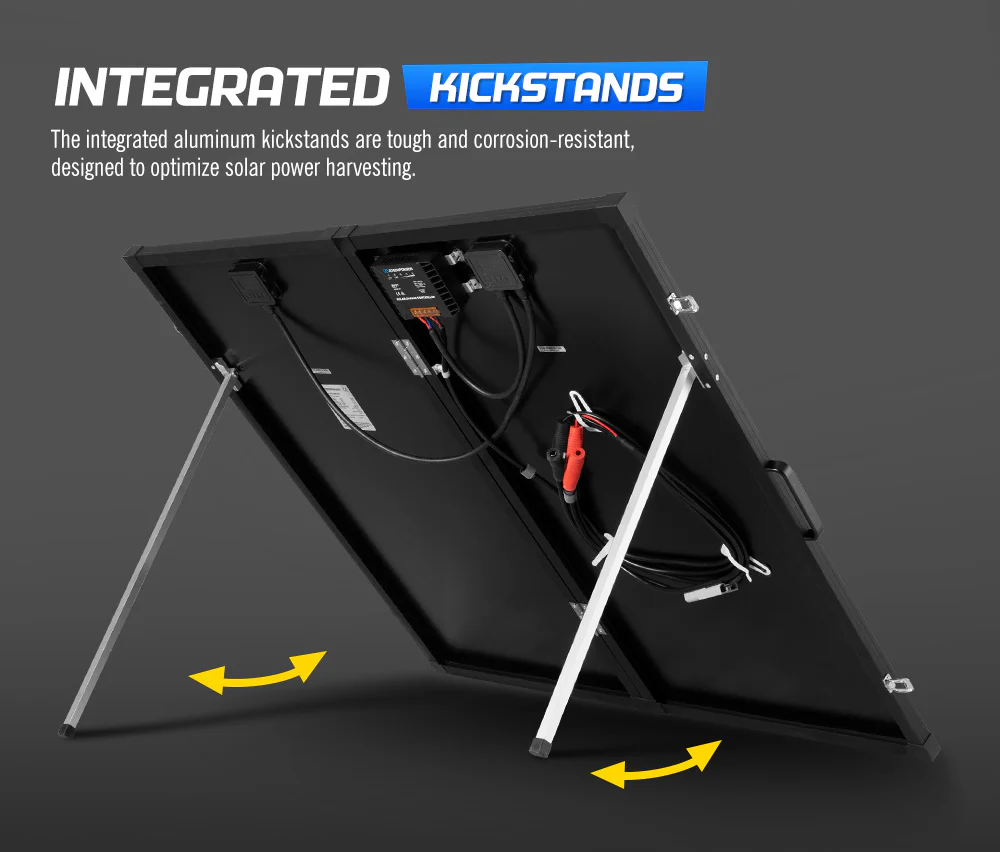

Integrated Kickstands: The integrated aluminum kickstands are tough and corrosion-resistant, designed to optimize solar power harvesting.

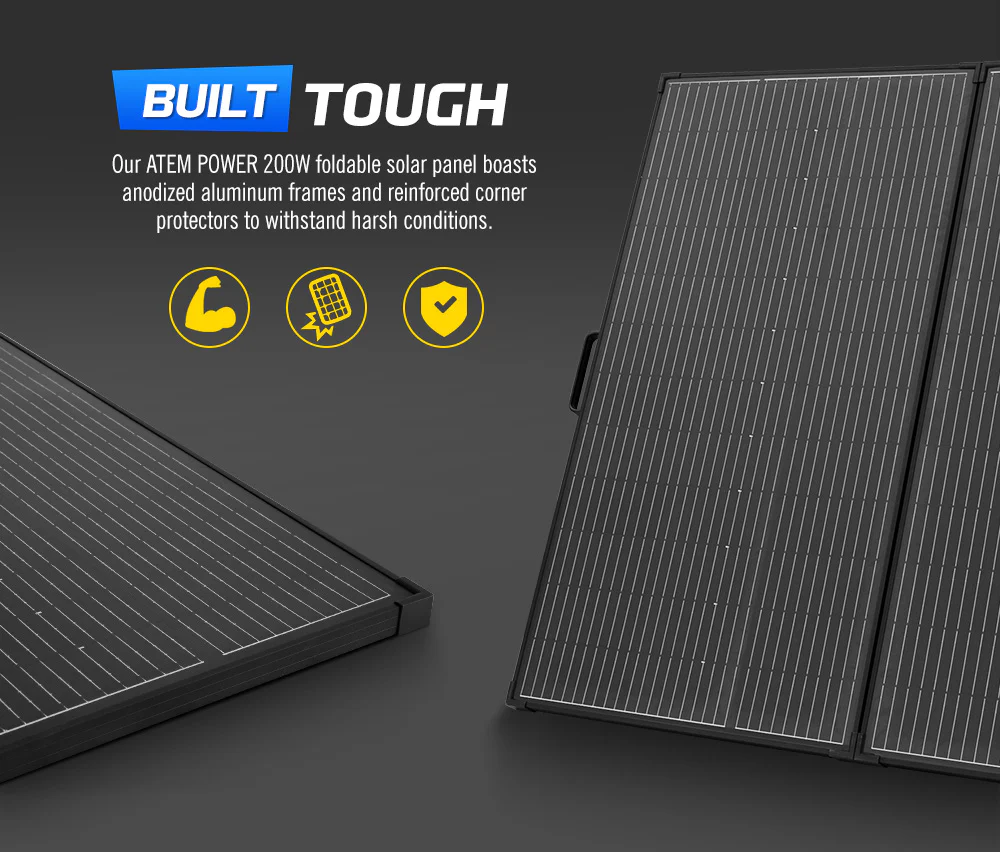

Built Tough: Our ATEM POWER 200W foldable solar panel boasts anodized aluminum frames and reinforced corner protectors to withstand harsh conditions.
No Interruptions: Enjoy hassle-free reconnecting with the auto-optimization function, ensuring an immediate connection when sunlight returns after an interruption.
Convenient Storage: Our panel comes with a storage bag, making it easy to store and transport. Whether you're on the go or keeping it at home, you’ll always have a solution.
SPECIFICATIONS

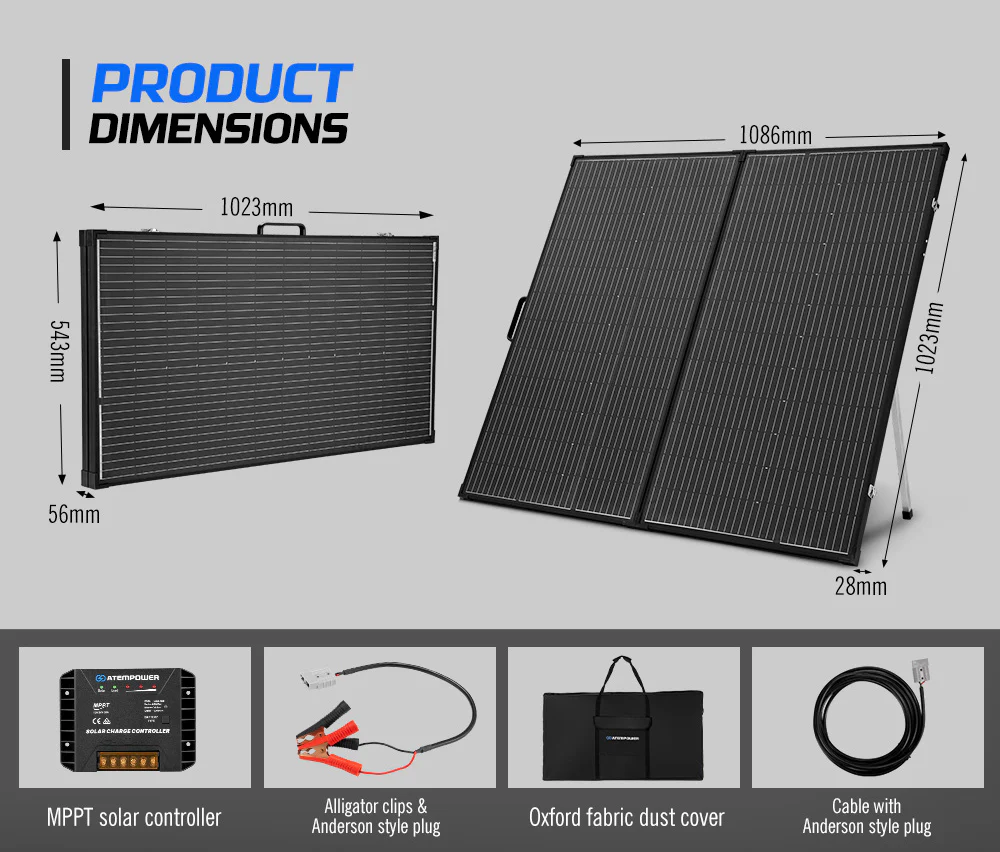

Folded Dimensions:1023 x 543 x 56 mm
Unfolded Dimensions:1023 x 1086 x 28 mm
Color:Black
Material:A-Grade Monocrystalline
Power:200W
Open-Circuit Voltage (VOC):22.4V
Short-Circuit Current (ISC):11.62A
Maximum Power Voltage (VMP):18.2V
Maximum Power Current (IMP):10.99A
Maximum System Voltage:1,000VDC
Connector Type:50A Anderson
Temperature Range:-40C ~ 85C
Power Tolerance: 2%
Package Size:106cm x 61cm x 9cm
Package Weight:9.85kg
Controller:
Voltage:12/24V
Max. PV Open Circuit Voltage:50V
Max. Solar Input Voltage:50V
Rated Charge Current:20A
Rated Discharge Current:20A
Max. PV Input Power:500W
Discharge Circuit Voltage Drop:0.3V
Self-consumption:8ma
No Load Current:10mA
Standby Current Draw:4ma
Nominal Current Draw:10ma
USB Output:5V/2.4A (Combined)
Operation Temperature:-20℃~50℃
Storage Temperature:-30℃~70℃
Relative Humidity:90%
PACKAGE INCLUDES
1 x ATEM POWER 200W Solar Panel with MPPT Solar Controller
1 x 450cm Cable with Alligator Clamps & 50A Anderson Plug
1 x Carry Bag
1 x User Manual
WARRANTY
1 year warranty
Original: $260.96
-70%$260.96
$78.29
